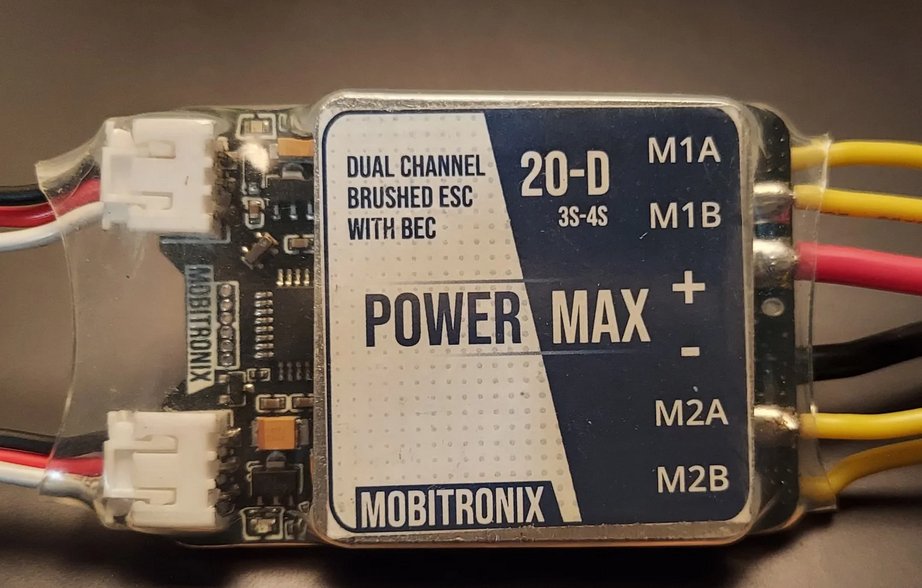

PowerMax 20-D (Dual Channel Brushed ESC 20 Amp)
The PowerMax 20-D is a dual channel bidirectional ESC capable of supplying 20 Amps per channel. This makes it a perfect centrepiece for your Roborace and Robosoccer bots.
Technical Specifications-
Input Voltage Range- 11-17V (3S- 4S)
Output Current (Continuous) – 20 Amp per channel
Output Current (Peak)- upto 45 Amp per channel
Dimensions-62 x 40 x 16 mm (excluding wires)
Weight- 50 gms (excluding wires)
Input- R/C Servo
BEC – 5V @ 100 mA (max)
Features include signal-loss failsafe, synchronous rectification, regenerative braking, and an isolated heat sink plate. The Powermax series can be used with any standard RC signals.
Looking to take your RC car, boat, or truck to the next level? Look no further than the PowerMax 20 Amp Brushed ESC! This powerful electronic speed controller is designed to deliver optimal performance and control for your brushed motor-powered vehicles.
