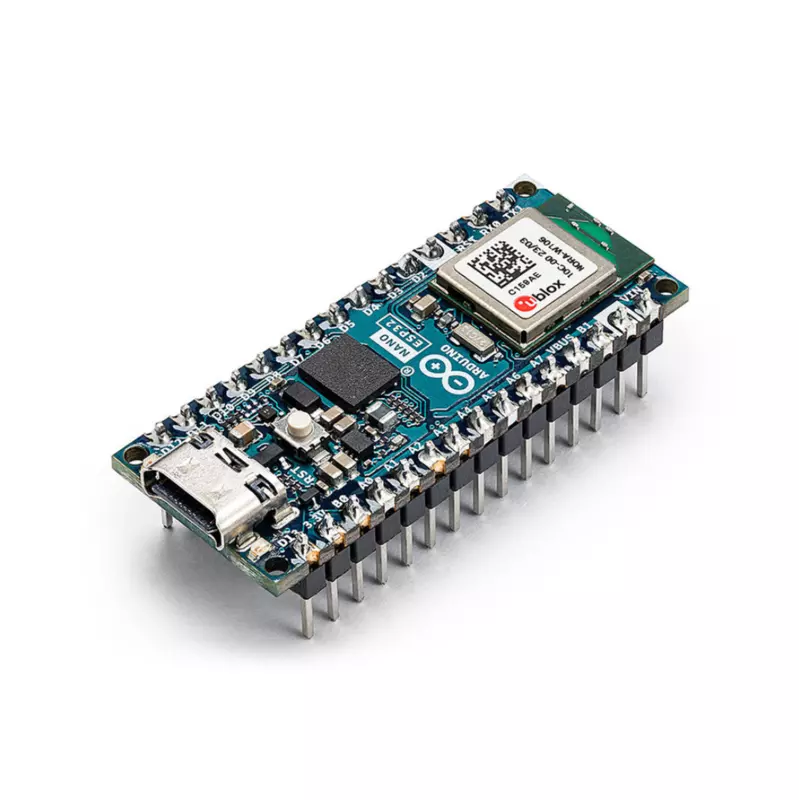

The Official Arduino Nano ESP32 is a versatile development board merging Official Arduino Nano form factor with ESP32-S3 microcontroller capabilities from u-blox® NORA-W106-10B. Ideal for IoT projects, it boasts ESP32-S3’s processing power, Wi-Fi, and Bluetooth LE (5.0) for wireless communication
| Item Type: | Development Board, With Header |
|---|
| Model: | Nano |
|---|
| Processor | Xtensa Dual-core 32-bit LX7 |
|---|
| Clock Speed | 240 MHz |
|---|
| ROM Capacity: | 384 kB |
|---|
| SRAM | 512 KB |
|---|
| Operating Voltage (V): | 3.3 |
|---|
| Input Supply Range (VDC) | Jun-21 |
|---|
| Deep Sleep Mode Current | 7 μA |
|---|
| Bluetooth Version: | 5 |
|---|
| Shipping Weight | 0.02 kg |
|---|
| Shipping Dimensions | 9 × 6 × 3 cm |
|---|
Features:
- Microprocessor: Xtensa Dual-core 32-bit LX7, up to 240 MHz, with 384 kB ROM and 512 kB SRAM.
- Power: Operating voltage of 3.3V, VBUS supplies 5V via USB-C, VIN range of 6-21V.
- Low Power: 7 μA in deep sleep, 240 μA in light sleep.
- RTC Memory: Ultra Low Power (ULP) Coprocessor, Power Management Unit (PMU), ADC in RTC mode.
- Connectivity: Wi-Fi, Bluetooth LE, Built-in antenna, 2.4 GHz transmitter/receiver, up to 150 Mbps.
- Pins: 14x digital (21x incl. analog), 8x analog (available in RTC mode), SPI, I2C, UART.
- Communication Ports: SPI, I2C, I2S, UART, CAN (TWAI).
- Deep Sleep Mode Consumption: 7 μA
- Light Sleep Mode Consumption: 240 μA
- RTC Memory: Ultra Low Power (ULP) Coprocessor
- Built-in Antenna 2.4 GHz Transmitter/Receiver
- Speed: Up to 150 Mbps
- Pins: Digital: 14 (21 including analog)
- Analog: 8 (available in RTC mode)
Communication Ports: SPI, I2C, I2S, UART, CAN (TWAI®)
Package Includes:
1 x Official Arduino Nano ESP32 with headers ABX00083
