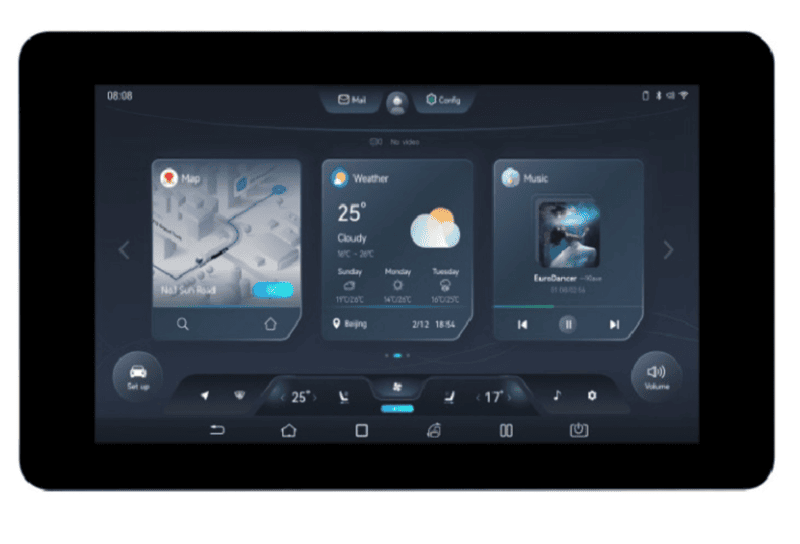

Waveshare ESP32-S3 7" Touch Display Dev Board, 800×480, 5-point touch, WiFi & Bluetooth support.

ESP32-S3-Touch-LCD-7 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

Features:

1. Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

3. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash

4. Onboard 7inch capacitive touch display, 800×480 resolution, 65K color

5. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support

6. Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

7. Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios

Specifications:

1. processor: Xtensa 32-bit LX7 dual-core

2. SRAM: 512KB

3. ROM: 384KB

4. resolution: 800×480

5. interface: I2C

6. display: 7inch

Package Includes:

1 x ESP32-S3-Touch-LCD-7

2 x HY2.0 2P to 2PIN male cable 10cm

1 x HY2.0 3P to 3PIN male cable 10cm

2 x HY2.0 4P to 4PIN male cable 10cm

1 x Screws pack
