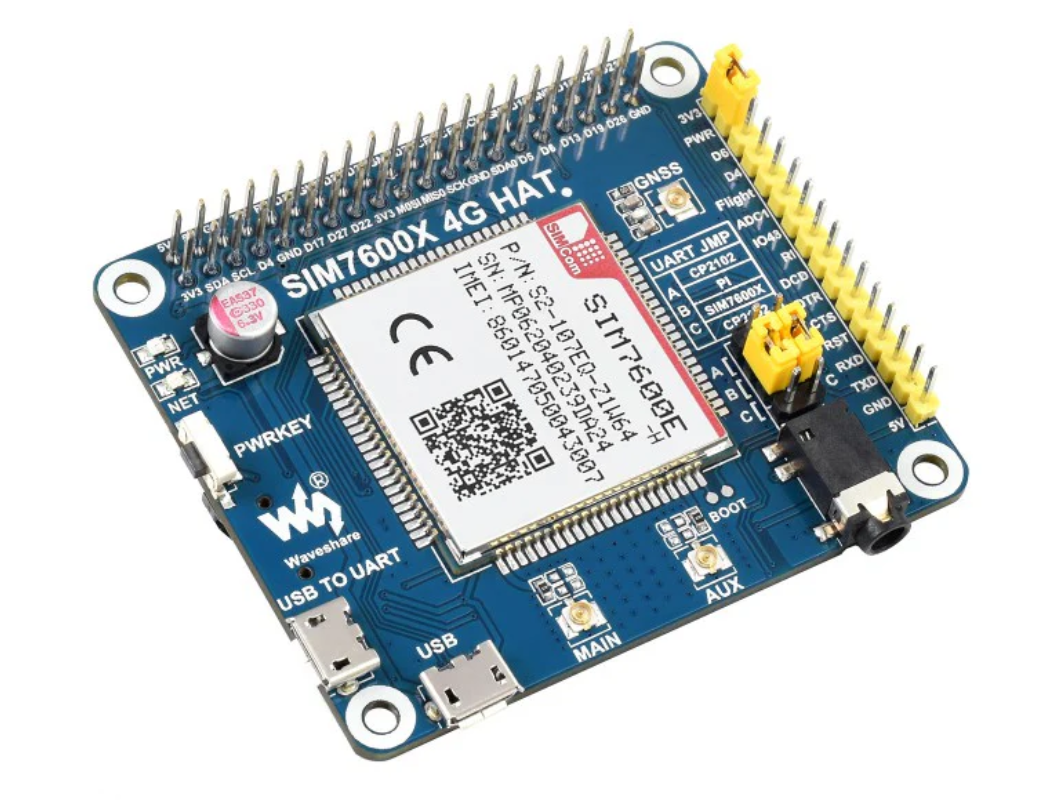

Name: SIM7600E-H 4G HAT for Raspberry Pi, LTE Cat-4 4G / 3G / 2G, GNSS
Price: 6449.0 INR
Availability: InStock

Non-returnable

₹6,449.00

Choose Quantity :

Product Details

Features at a glance

GPIO Header	Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Network Features	Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
Positioning Systems	Supports GPS, BeiDou, Glonass, GALILEO, QZSS, and LBS base station positioning
USB Interface	Onboard USB for AT command testing, GPS data reading, etc.
UART Debugging	Onboard CP2102 USB to UART converter for serial debugging
Breakout Pins	UART control pin breakout to interface with Arduino/STM32
SIM Card Support	SIM card slot supports 1.8V/3V SIM cards
TF Card Slot	For data storage such as files and messages
Audio Interface	Onboard audio jack and audio decoder for telephone call functionality
Status Indicators	2× LED indicators to monitor operating status
Voltage Translator	Configurable operating voltage: 3.3V or 5V via jumper
Baudrate	300bps ~ 4Mbps (default: 115200bps); autobauding: 9600bps ~ 115200bps
AT Command Support	3GPP TS 27.007, 27.005, and V.25TER command sets
SIM Application Toolkit	SAT Class 3, GSM 11.14 Release 99, USAT
Development Resources	Includes manual and examples for Raspberry Pi, Jetson Nano, Arduino, STM32

Specifications

Category	Specification
Frequency Band	LTE Cat-4
	LTE-FDD: B1/B3/B5/B7/B8/B20
	LTE-TDD: B38/B40/B41
	3G: UMTS/HSPA+: B1/B5/B8 2G: GSM/GPRS/EDGE: 900/1800 MHz
GNSS	Satellite Systems: GPS/Beidou/GLONASS/GALILEO/QZSS
	Receiver Type: 16-channel, C/A Code
	Sensitivity: -159 dBm (GPS), -158 dBm (GLONASS), Cold starts: -148 dBm
Time-To-First Fix (Open Air)	Cold starts: <35s Hot starts: <1s
SMS and Audio	SMS Types: MT, MO, CB, Text, PDU Storage: USIM card and ME (default)
SMS and Audio	Audio: Supports echo cancellation and noise reduction
Power & Environment	Power Supply: 5V Operating Voltage: 5V / 3.3V (jumper configurable)
	Operating Temperature: -30°C to 80°C
	Storage Temperature: -45°C to 90°C
Dimensions	56.21mm × 65.15mm

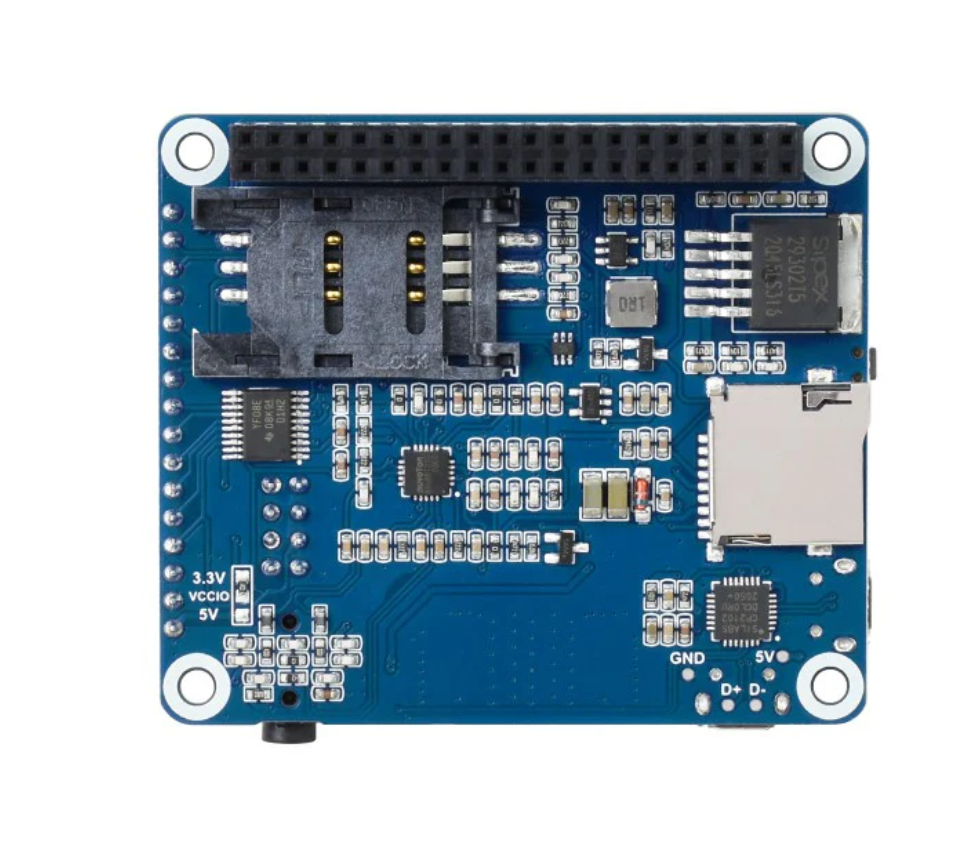

Component	Description
SIM7600E-H	4G LTE module supporting global bands
CP2102	USB to UART converter
NAU8810	Audio decoder for voice functions
TXS0108EPWR	Voltage level translator (translates 3.3V/5V to 1.8V)
MP2128DT	Power chip for power regulation
SPX29302	Low dropout voltage regulator
Raspberry Pi GPIO Header	Standard 40-pin header for Pi compatibility
SIM7600 Control Interface	For interfacing with Arduino, STM32, etc.
SIM Card Slot	Supports 1.8V/3V SIM cards
TF Card Slot	For storing messages, files, and logs
3.5mm Audio Jack	Supports microphone and earphone
USB Interface	For AT command testing and GPS data access
USB to UART Interface	Used for serial debugging or Pi terminal access

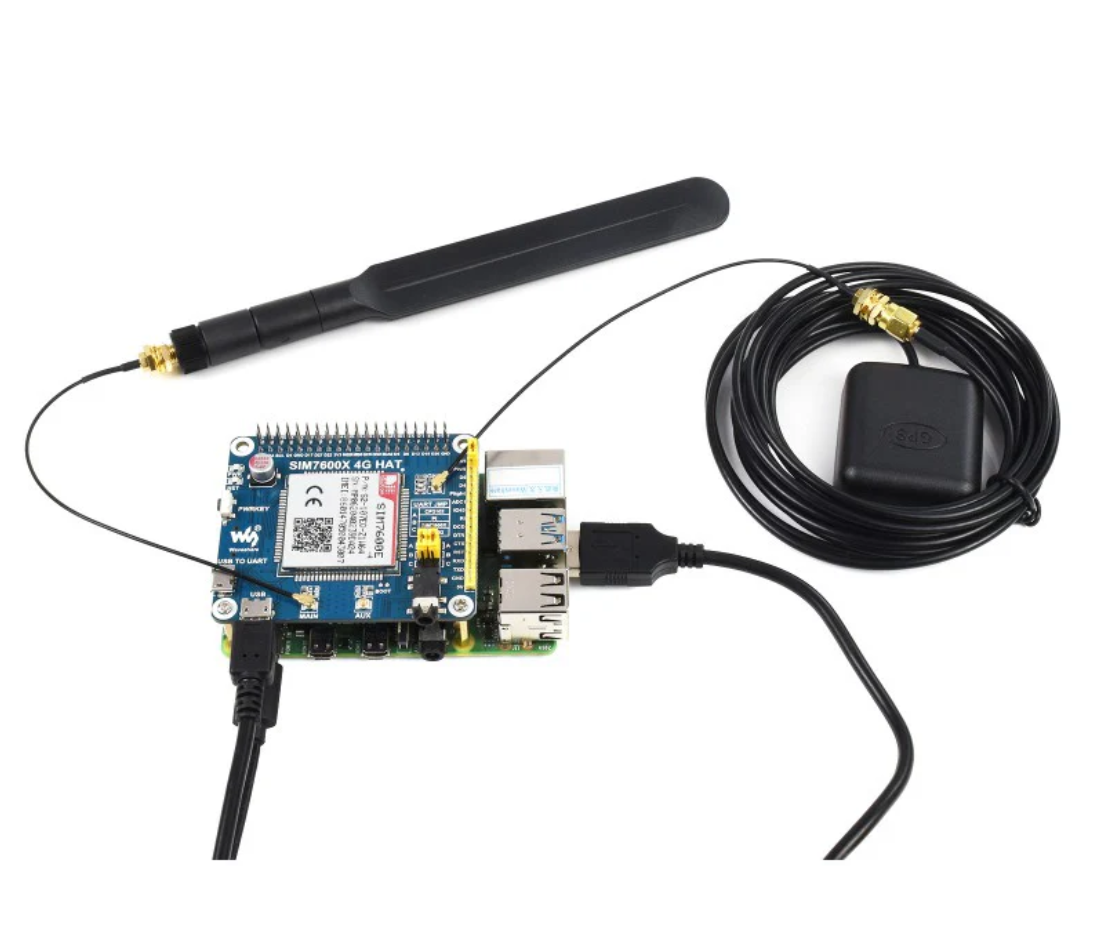

Main Antenna Connector	Primary LTE antenna
AUX Antenna Connector	Diversity antenna
GNSS Antenna Connector	For GPS/GLONASS/etc. positioning
Power Switch	Manual on/off control
Network Status Indicator	LED shows SIM7600 network activity
Power Indicator	LED shows board power status
Voltage Selection Jumper	Set via 0Ω resistor jumper: 3.3V or 5V (VCCIO)
UART Selection Jumper	A: Access Raspberry Pi via USB to UART B: Control SIM7600 via Pi GPIO C: Control SIM7600 via USB to UART
PWR Configuration Jumper	PWR - 3V3: Auto start on power-up (default) PWR - D6: Controlled by Pi D6 pin (startup/shutdown)
Flight Mode Configuration Jumper	NC: No control (default) Flight - D4: Controlled by Pi D4 pin
USB Connector Pads	Direct solder pads for USB connection
BOOT Pads	Used to force programming/firmware update
