Greetings, Raspberry Pi enthusiasts! It’s official—the Raspberry Pi 5 has arrived!

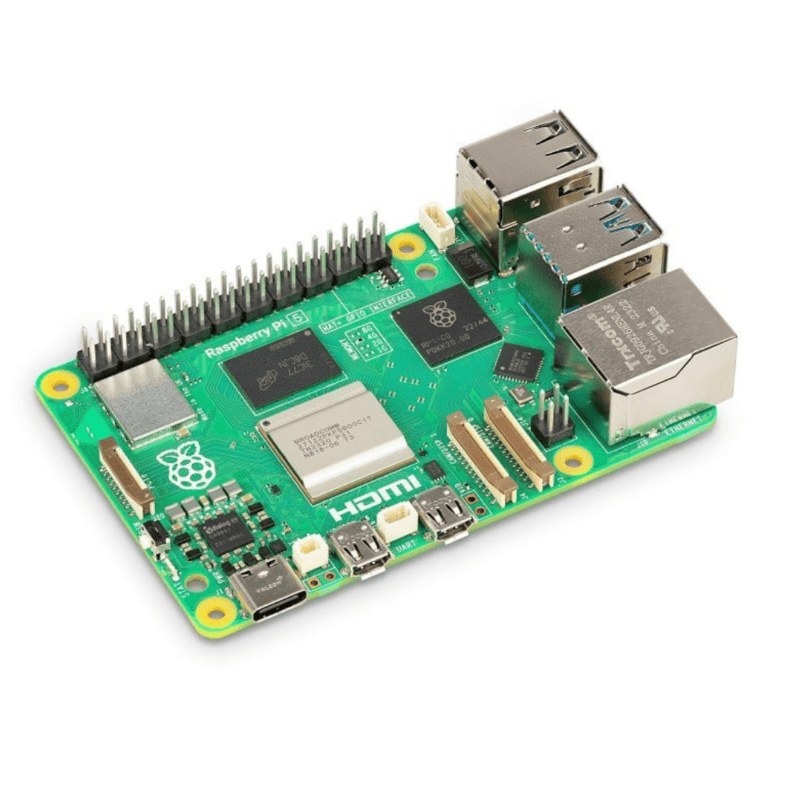

Welcome to the cutting-edge Raspberry Pi 5 Model 4GB RAM, the latest generation of this iconic computing marvel. Packed with a 64-bit quad-core Arm Cortex-A76 processor clocked at 2.4GHz, the Raspberry Pi 5 boasts an impressive 2–3× increase in CPU performance compared to its predecessor, the Raspberry Pi 4.
Not stopping there, it delivers a substantial boost in graphics power thanks to its 800MHz VideoCore VII GPU, supports dual 4Kp60 display output via HDMI, and offers state-of-the-art camera capabilities courtesy of a reimagined Raspberry Pi Image Signal Processor. It promises a seamless desktop experience for consumers and opens new horizons for industrial applications.
Take a moment to explore the upgrades introduced by the Raspberry Pi Foundation in this brand-new generation of the Raspberry Pi 5 Model 4GB pocket computer. Building upon the significant hardware enhancements of the Pi 4, the Pi 5 comes equipped with a host of hardware and software improvements outlined below.
Note: Use only with the recommended power supply. Using any other power supply may cause damage and will void the warranty.
Features:
- 2.4GHz quad-core, 64-bit Arm Cortex-A76 CPU, with 512KB L2 caches and a 2MB shared L3 cache
- VideoCore VII GPU
- LPDDR4X-4267 4GB SDRAM
- 2.4 GHz and 5.0 GHz 802.11ac Wi-Fi
- Bluetooth 5.0 / Bluetooth Low Energy (BLE)
- Micro SD card slot, with support for high-speed SDR104 mode
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- 2 × USB 2.0 ports
- Gigabit Ethernet, with PoE+ support (requires PoE+ HAT)
- 2 × 4 lane MIPI camera/display transceivers
- PCIe 2.0 x1 interface for fast peripherals
- 5V/5A DC power (PD enabled)
- Raspberry Pi standard 40-pin header
- Real-Time Clock (RTC), powered by an external battery
- On-board power button!!
| Item Type: | Development Board |
|---|
| Model: | Pi 5 |
|---|
| RAM Capacity: | 4GB |
|---|
| Model Name | Raspberry Pi 5 Model 4GB |
|---|
| Processor | 64-bit Arm Cortex-A76 CPU |
|---|
| RAM: | 4GB LPDDR4 SDRAM |
|---|
| Connectivity | 2 × USB 2.0 Ports, 2 × USB 3.0 Ports, Bluetooth 5.0, USB-C, Wi-Fi + Bluetooth® Low Energy |
|---|
| GPIO | Standard 40-pin GPIO Header |
|---|
| Multimedia | H.265 (4Kp60 decode); |
|---|
| Video and Sound | 2 × micro HDMI ports (up to 4Kp60 supported), 4-Pole Stereo Audio and Composite Video Port |
|---|
| Clock Speed | 2.4 GHz |
|---|
| On Board Ports | 1 x DSI, 1 x Ethenet, 2 x Micro HDMI, 2 x USB 2.0, 2 x USB 3.0, 40-pin 2.54 mm (2×20 strip) GPIO, USB Type-C port |
|---|
| Micro SD Card Slot (Y/N): | Yes, Supports high-speed SDR104 Mode |
|---|
| Operating Temperature (°C): | -10 to 60 |
|---|
| Length (mm): | 85 |
|---|
| Width (mm): | 56 |
|---|
| Height (mm): | 8 |
|---|
| Weight (g): | 105 |
|---|
| Shipping Weight | 0.1 kg |
|---|
| Shipping Dimensions | 12 × 8 × 3 cm |
|---|
Package Includes:
1 x Raspberry Pi 5 Model 4GB RAM
