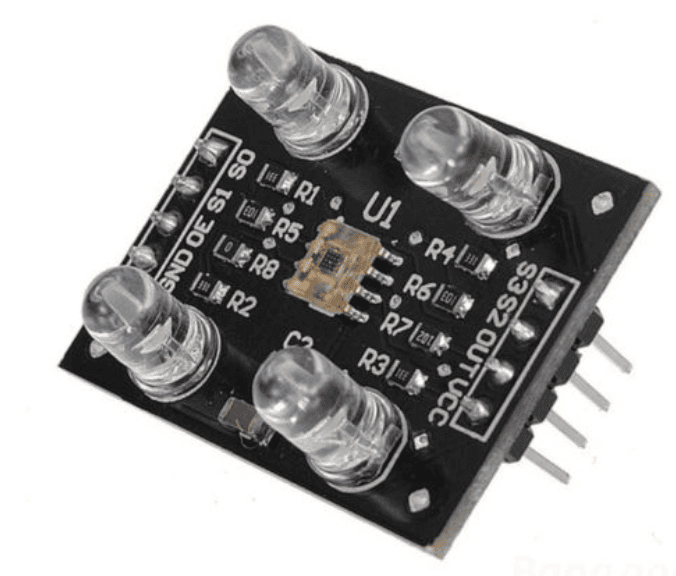

Color Recognition Sensor Module TCS3200 for MCU Arduino

The TCS3200 Color Recognition Sensor Module for MCU Arduino uses a high-quality light sensor allowing you to sense any color through a combination of Red, Green, and Blue. The module provides all of the pins of the TCS3200 on convenient 0.1″ headers – ideal for use with PCBs, breadboard or stripboard.

Four white LEDs provide plenty of light for the color sensor and allow you to use the module in any ambient light.

The module requires only a single supply voltage between 2.7V and 5.5V – making it compatible with nearly all common microcontrollers, including PICs, AVRs, ARM, Arduino and more!

The pinout is clearly labeled on the board and is as follows

Header one on the left side of the board

• S0: Output frequency scaling selection input (along with S1)

• S1: Output frequency scaling selection input (along with S0)

• OE: Output Enable – if held low, the output of the module is turned on

• GND: Ground – connect to 0V

Header two on the right side of the board

• S3: Photodiode type (along with S2)

• S2: Photodiode type (along with S3)

• OUT: Output – A square wave appears here showing the intensity of the detected colour

• VCC: Power – connect to 2.7V-5.5V

The Photodiode type pins allow you to pick which color light you are currently detecting:

S2           S3           Photodiode type
Low      Low           Only red light
Low      High          Only blue light
High     Low              No filter
High                         green light

By combining the reading of each of the three colors, you can identify any visible color!
