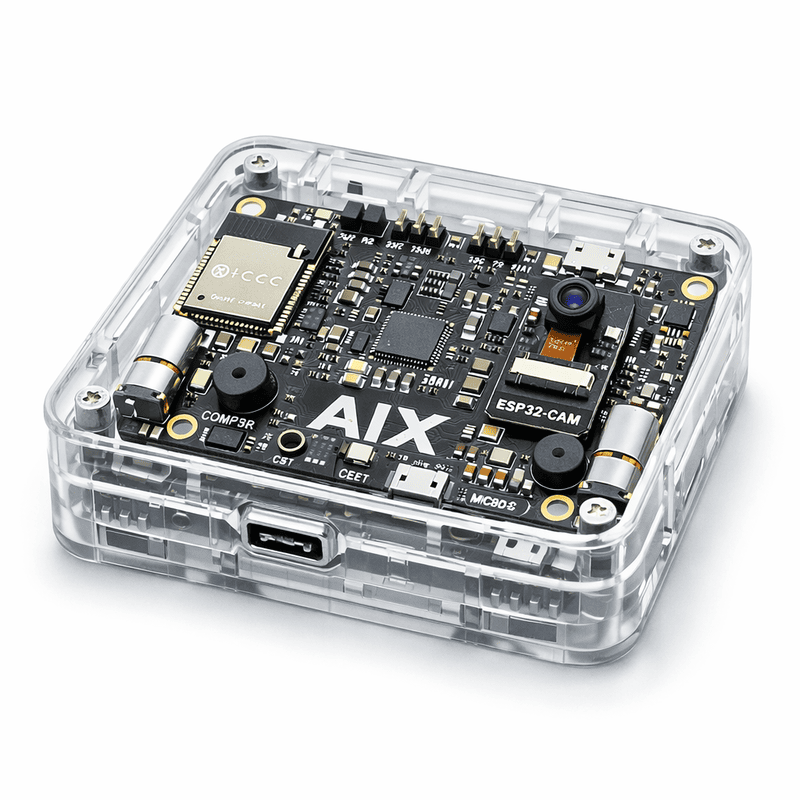

AIX – Robots That Can See, Hear, Think and Move
AIX is an advanced AI robotics controller designed for next-generation STEM learning and intelligent robot development. Built around the powerful ESP32-S3 processor, AIX enables robots to see using computer vision, hear voice commands, think with onboard AI processing, and move using integrated motor control.
With integrated OV5640 AI camera, MEMS microphone, MPU6050 motion sensor, MicroSD storage, Wi-Fi, Bluetooth, and USB-C, AIX provides a complete platform for building AI robots, smart automation systems, and IoT robotics projects.
Designed for students, educators, robotics labs, and innovators, AIX simplifies the process of creating intelligent robots capable of vision recognition, voice interaction, motion sensing, and autonomous movement.
Key Features
AI Vision System
Equipped with an OV5640 camera module, enabling advanced computer vision applications such as face detection, object recognition, and AI-based robotics projects.
Voice Interaction
Integrated MEMS microphone allows robots to detect and process voice commands for interactive AI robotics applications.
Motion & Orientation Sensing
Built-in MPU6050 6-axis motion sensor provides accelerometer and gyroscope data for balance detection, gesture recognition, and intelligent navigation.
Robotics Ready Motor Control
Integrated dual motor driver supports N20 DC motors, enabling easy development of robot cars, autonomous robots, and mobile robotics systems.
Edge AI Processing
Powered by the ESP32-S3 dual-core processor, enabling on-device AI processing, IoT connectivity, and real-time robotics control.
Wireless Connectivity
Supports Wi-Fi and Bluetooth, allowing robots to connect to mobile apps, cloud platforms, and IoT systems.
Expandable Sensor Interface
Includes I2C and GPIO expansion ports for connecting additional sensors, modules, and robotics accessories.
Onboard Storage
Built-in MicroSD card slot supports data logging, image storage, and AI dataset recording.
USB Type-C Connectivity
Provides high-speed programming, serial communication, and battery charging through a modern USB-C interface.
Portable Power System
Supports 3.7V Li-ion battery operation, making AIX ideal for portable robotics and mobile AI projects.
Technical Specifications
| Category | Specification |
|---|
| Processor | ESP32-S3 Dual-Core Microcontroller |
| Flash Memory | 16MB Flash |
| Wireless | Wi-Fi 802.11 b/g/n, Bluetooth 5.0 BLE |
| Camera | OV5640 5MP AI Vision Camera |
| Microphone | MEMS Microphone |
| Motion Sensor | MPU6050 6-Axis Accelerometer & Gyroscope |
| Motor Control | Dual N20 DC Motor Driver |
| Connectivity Ports | I2C, GPIO Expansion |
| Storage | MicroSD Card Slot (Up to 32GB) |
| USB Interface | USB Type-C |
| Power Supply | 3.7V Li-ion Battery Support |
| Indicators | Status LEDs |
| Programming Support | Arduino IDE, Python, Block Coding |
| Applications | AI Robots, Computer Vision, IoT Robotics |
Applications
✅ AIX makes it possible to build intelligent robots that can truly
See, Hear, Think and Move. 🤖
