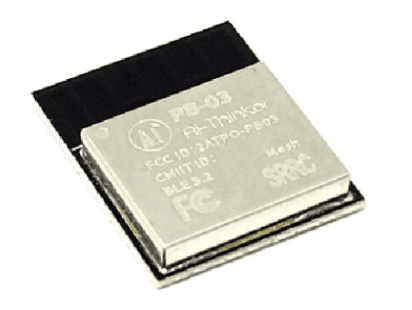

Ai-Thinker PB-03 BLE 5.2 Module
PB-03 can meet the power consumption requirements of most application scenarios, as the RF output power is adjustable, and other features can be fine-tuned. As such, the Bluetooth LE 5.2 module provides an optimal balance between the communication range, data rate, and power consumption
PB-03 is a BLE module developed by Shenzhen Ai-Thinker Technology Co, Ltd.
The core processor chip PHY6252(SSOP24)of this module is a BLE SoC with high integration and low power consumption, which is specially designed for various applications such as IoT, mobile devices wearable electronic devices and smart homes.
PB-03 can meet the power consumption requirements of most application scenarios, as the RF output power is adjustable, and other features can be fine-tuned. As such, the Bluetooth LE 5.2 module provides an optimal balance between the communication range, data rate, and power consumption
PB-03 is a BLE module developed by Shenzhen Ai-Thinker Technology Co, Ltd.
The core processor chip PHY6252(SSOP24)of this module is a BLE SoC with high integration and low power consumption, which is specially designed for various applications such as IoT, mobile devices wearable electronic devices and smart homes.
Features:
PB-03 module provide rich peripheral interfaces including UART, PWM, ADC, I2C, SPI, PDM, DMA and up to 19 IOs.
PB-03 module has many unique hardware security mechanisms Hardware encryption accelerator supports AES algorithm.
PB-03 module supports BLE with low power consumption: BLE 5.2 and BLE mesh Bluetooth rate
support: 125Kbps, 500Kbps, 1Mbps, 2Mbps. Support broadcast expansion multi-broadcast channel selection.
Application: Smart light control, mesh networking
Packages includes:
1 x Ai-Thinker PB-03 BLE 5.2 Module
Specification:
Item Type: | Ai Thinker Module |
|---|---|
Bluetooth Version: | BLE, 5.2 |
Model Type: | BlE 5.2, BLE5.2 |
Chipset | PHY6252 |
SPI Flash | 256KB |
Antenna Type: | On-board antenna |
Frequency | 2400~2483.5MHz |
Interface: | UART/GPIO/ADC/PWM/I2C/I2S/SPI/PDM/DMA |
Additional Specs.: | BLE 5.2 |
Security | AES-128 |
Package: | SMD-61 |
Dimensions (L x W x H) mm | 16.6×13.2×2.8(±0.2)mm |
Shipping Weight | 0.001 kg |
Shipping Dimensions | 4 × 3 × 1 cm |
